Acquaflo 55 PSI Diaphragm Pump Boat Marine Caravan RV Water Pump 4.2 GPM 12V

Pumps

Acquaflo 55 PSI Diaphragm Pump Boat Marine Caravan RV Water Pump 4.2 GPM 12V

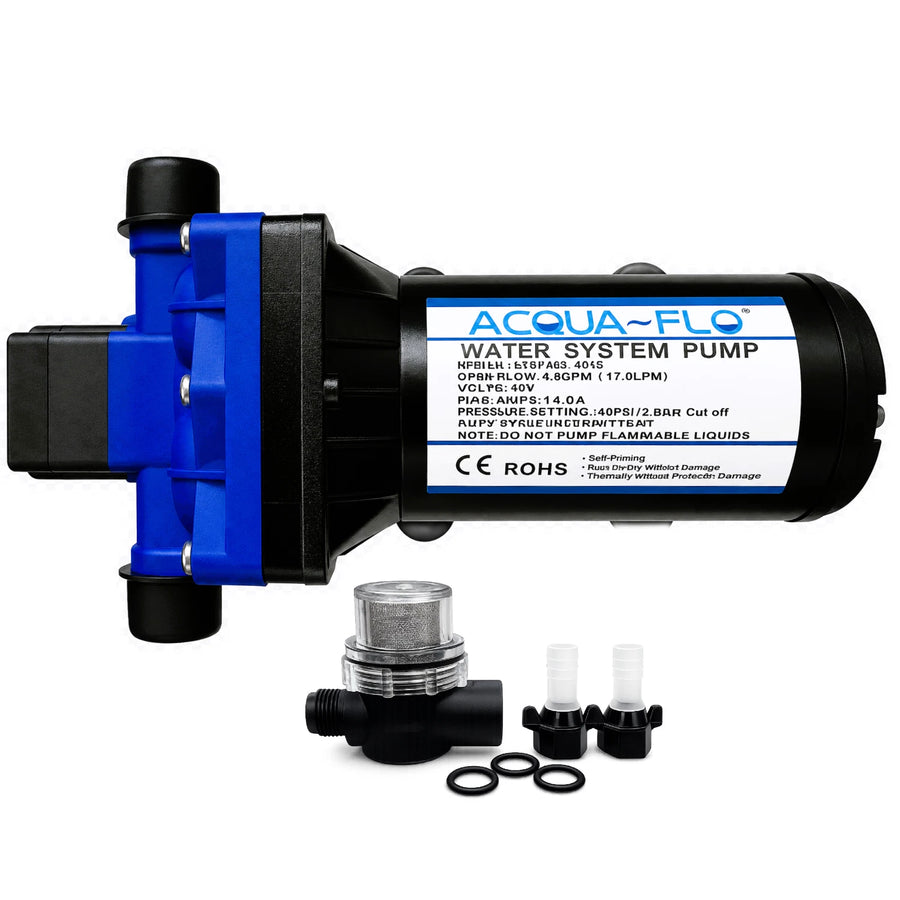

The Acqua-Flo AFDP403-4045 is a robust 12V self-priming diaphragm pump designed for reliable, on-demand water delivery across marine, RV, caravan, and off-grid applications. Featuring a built-in pressure switch, the pump starts automatically when water demand is detected and ...

Commercial Options Enquire Now

Official Importer

Exclusive Radiant Rhino Distributor

UK & Ireland ·

1 Year Warranty

Next-Day UK Support

Premium-grade

About This Product

Product description

The Acqua-Flo AFDP403-4045 is a robust 12V self-priming diaphragm pump designed for reliable, on-demand water delivery across marine, RV, caravan, and off-grid applications. Featuring a built-in pressure switch, the pump starts automatically when water demand is detected and stops when pressure is restored — no manual intervention required.

Certifications

ISO9001

ISO 9001

Quality Management

ISO8846

ISO 8846:1990

Marine Ignition Protection

CE Marked

EU Conformity

NSF 61

NSF 61 Certified

Drinking Water System Components – Health Effects

RoHS

RoHS Compliant

Restriction of Hazardous Substances

CSA

CSA Certified

Canadian Standards Association

Key Features

Automatic Pressure Switch

Starts and stops on demand — activates when a tap opens, shuts off when pressure is restored.

Self-Priming

No manual priming needed. Draws water from source automatically from first use.

Over-Pressure & Overheat Protection

Built-in safety cut-offs protect the motor and pump from damage in fault conditions.

Run Dry Safe

Can operate dry for up to 30 minutes without damage — ideal for intermittent systems.

Low Noise Operation

Quiet diaphragm mechanism — suitable for cabins, caravans, and living spaces.

4-Chamber Diaphragm

Smooth, steady flow with reduced pulsation vs single or dual-chamber designs.

Specifications

Specification	Detail
Model	AFDP403-4045
Voltage	12V DC
Current Draw	5.8A
Flow Rate	17.0 LPM / 4.2 GPM
Max Pressure	40 PSI / 2.8 BAR
Max Lift	20 Metres
Power	168W
Pump Design	4-Chamber Diaphragm
Motor Type	Permanent Magnet
Body Material	Polyamide 66 (PA66)
Port Size	1/2" (14mm)
Max Liquid Temperature	60°C
Weight	2.3 kg

Typical Applications

Sailing Yacht & MotorboatRV & MotorhomeCaravan & CampervanCanal & NarrowboatGarden IrrigationPressure Spraying & CleaningOff-Grid & Remote HousingIndustrial Liquid Transfer

What's in the Box

Acquaflo 55 PSI Diaphragm Pump Boat Marine Caravan RV Water Pump 4.2 GPM 12VModel AFDP403-3055 — 40 PSI / 17.0 LPM, supplied in full retail packaging.

VAT InvoiceA VAT invoice is provided with every order.

Retail PackagingSupplied in original manufacturer packaging.
