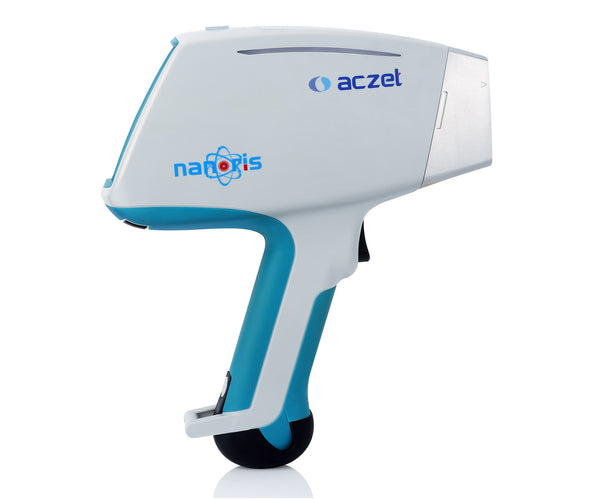

Handheld Gold Testing Machine Nanoris SI PIN
The Nanoris SI-PIN Handheld Gold Testing Machine is a compact, high-precision gold analyzer designed for jewelers, gold traders, pawn shops, refinery field teams, and hallmarking professionals who need fast, reliable, and non-destructive purity testing on the...
Detector
(Ti (22) - U (92)
Measurement Element Range
(RSD) < 1%
Measurement Accuracy
USB, E-mail, Wi-Fi, Bluetooth
Official Partner
Exclusive ACZET Distributor
UK & Ireland · Precision Instruments
3 Years Warranty
Next-Day UK Support
Non-Destructive Analysis
About This Product
Product description
Key Features
Why choose the Handheld?
Advanced SI-PIN detector technology
Advanced SI-PIN detector technology for accurate and stable gold purity measurement
Non-destructive testing that leaves jewelry
Non-destructive testing that leaves jewelry and metal surfaces unharmed
High portability with lightweight, ergonomic
High portability with lightweight, ergonomic handheld design
Fast analysis time
Fast analysis time for quick on-the-spot gold verification
Touchscreen interface offering easy operation
Touchscreen interface offering easy operation and clear result visibility
Durable build suitable
Durable build suitable for field use, shop counters, and mobile buying environments
Capable of analyzing gold ornaments
Capable of analyzing gold ornaments, coins, bars, scrap gold, and alloyed metals
Technical Data
Full specification
Detector
(Ti (22) - U (92)
Measurement Element Range
(RSD) < 1%
Measurement Accuracy
USB, E-mail, Wi-Fi, Bluetooth
Data Transmission
Wi-Fi, Bluetooth
Control System
Internal Storage: 4GB (Expandable upto 32GB)
Network Connectivity
Customized Industrial - Grade Control System : CPU : 2.4 Ghz, RAM : 2GB,
Application Mode
Precious Alloy Pin, RoHs Pin, Coating Thickness
Camera
500W High Definition Camera
Detection Head protection cover
Probe Protection, On-site Calibration, radiation protection
Analysis Methods
Empirical coefficient method, Intelligent FP Method
Simultaneously Detecting elements
Customizable according to customer requirements
Excitation Source
50kV / 200µA X-ray fluorescence / 500 µA (Optional)
Cooling Method
Two-stage thermoelectric cooling
Operating Temperature
0°C -40°C
Operating humidity
≤90%
Maintenance Method
Multiples safety measures, radiation-free when not testing
Dimensions
254mm (L) x 91mm (W) x 319mm (H)
Material
Alloy, polycarbonate
Weight
≤1.75 kg (Including battery)
