Gold Testing Machine

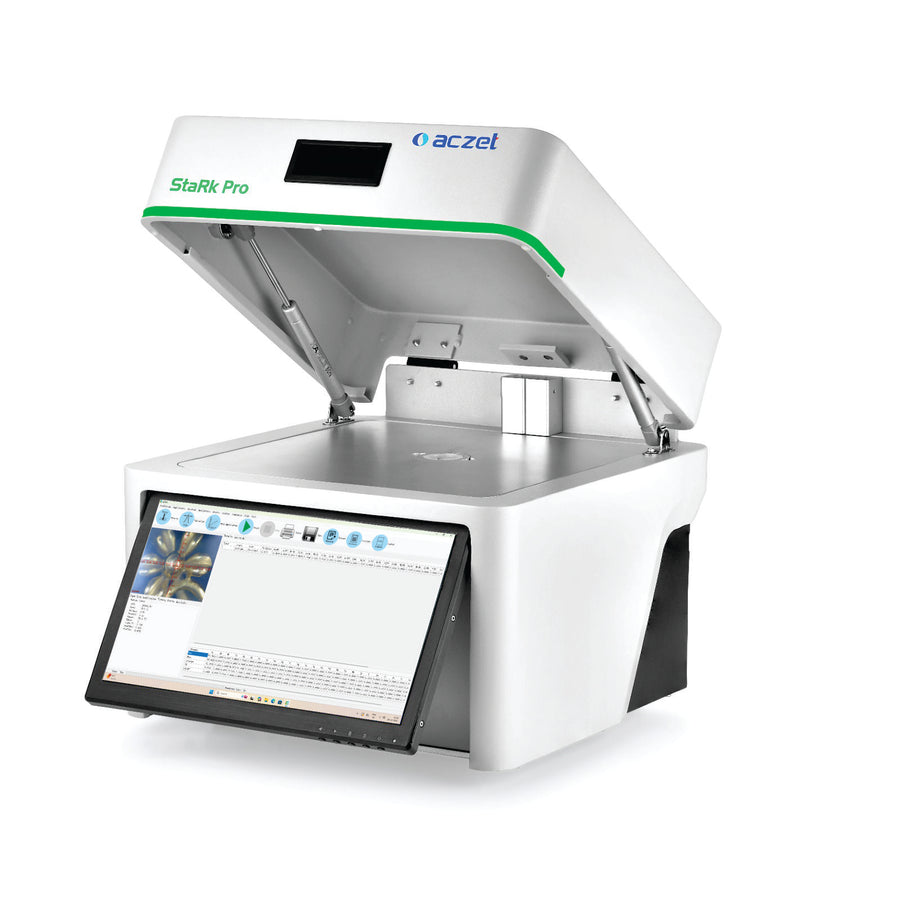

StaRk PRO SSD InBuilt XRF for Precious Metal Testing
The StarRk PRO Inbuilt SDD is a high-performance precious metal testing system engineered with an integrated Silicon Drift Detector (SDD) for superior accuracy and fast, reliable purity analysis. Designed for professional environments where precision and...
Detector
Silicon Drift Detector (SDD)
Measurement Time
10-60 Sec
X-ray Tube
W-Target
Official Partner
Exclusive ACZET Distributor
UK & Ireland · Precision Instruments
3 Years Warranty
Next-Day UK Support
Non-Destructive Analysis
About This Product
Product description
Key Features
Why choose the StaRk?
Multiple Detector Options
Silicon Drift Detector
Built-in Screen
Instant on-screen results without the need for an external monitor or computer
Measuring Direction
Bottom-to-top X-ray geometry for effortless sample positioning
Auto Focus
Auto-focus technology reduces setup time and improves repeatability
Fast Detection System
Quick results with SDD
Statistical Analysis
Statistical analysis for multi-point testing results
Testing Method
Non-destructive method of testing
X-ray Tube
Durable X-ray tubes built for continuous operation
Software
X-MasteR software with empirical and fundamental calibration modes
Analysis Capability
Analyze up to 8 elements simultaneously; identify up to 20 elements qualitatively
Pre-calibration
Pre-calibrated for gold and precious metals
Statistical Tools
Includes mean, standard deviation, and trend tracking
Reporting
Customized analysis report
User Interface
Intuitive user-friendly software with integrated display for seamless on-device operation
Technical Data
Full specification
Detector
Silicon Drift Detector (SDD)
Measuring Direction
Bottom to Top
Applied Application
Gold & Silver Analysis in jewellery and alloys, Precious Metals, Coating Thickness & Bath Analysis
Detector Range
Au, Ag, Cu, Zn, Ni, Pd, Cd, Rh, Ru, Pt, Fe, Co, In, Os, Ir, Mn, Pb, Ti, Hf, Cr, V, W, Ta & More
Measurement Time
10 to 60 sec.
X-ray Tube
Mini-focus, high performance W-target, Spot 0.8mm, Long Life, High efficiency, tungsten target oil cooled
High Voltage
SOkV ( l mA) Software Control Optimized
Collimator
0.3mm0 or O.Smm0, Optional four positions Collimator changer
Dimension
395 x 390 x 320 mm (W x D x H)
Weight
30 kg
