Gold Testing Machine
ACZET · UK & Ireland
Gold Testing Machine

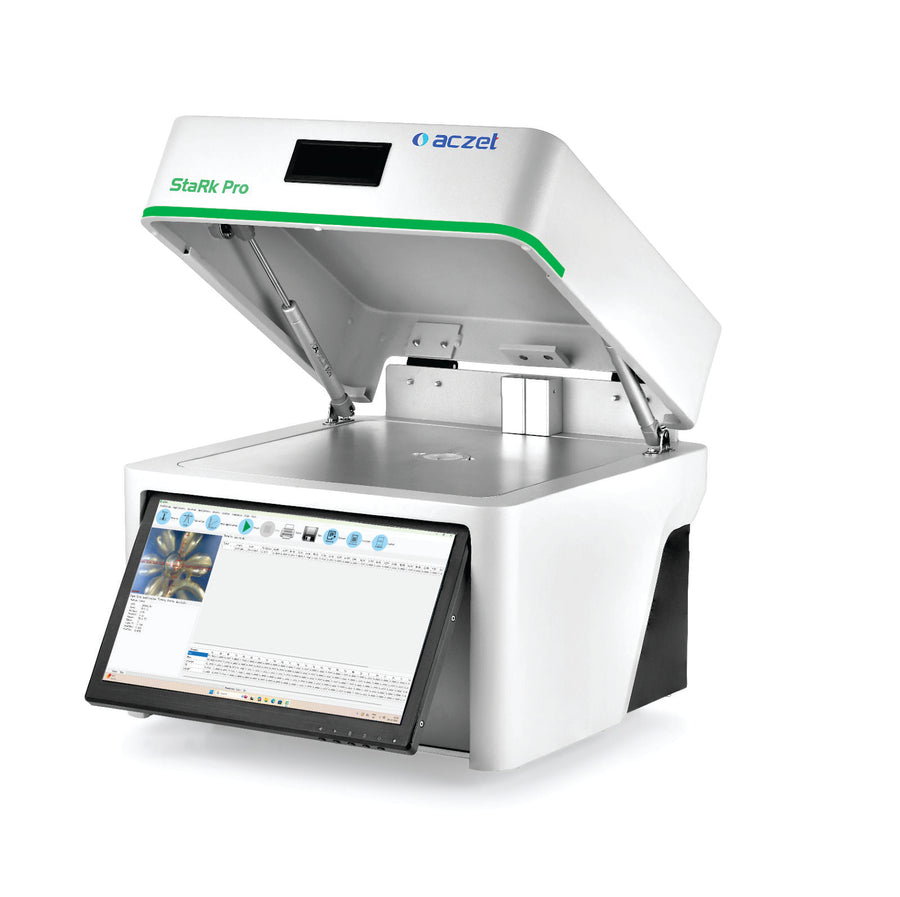

StaRk PRO FSSD InBuilt XRF for Precious Metal Testing
The StarRk PRO Inbuilt FSDD is a premium gold and precious metal testing system engineered with an integrated Fast Silicon Drift Detector (FSDD)—delivering unmatched accuracy, speed, and consistency. Designed for high-demand environments, this model combines...
Detector
Fast Silicon Drift Detector (FSDD)
Measurement Time
10-60 Sec
X-ray Tube
W-Target
Official Partner
Exclusive ACZET Distributor
UK & Ireland · Precision Instruments
3 Years Warranty
Next-Day UK Support
Non-Destructive Analysis
About This Product
Product description
Key Features
Why choose the StaRk?
Multiple Detector Options
Fast Silicon Drift Detector
Built-in Screen
Instant on-screen results without the need for an external monitor or computer
Measuring Direction
Bottom-to-top X-ray geometry for effortless sample positioning
Auto Focus
Auto-focus technology reduces setup time and improves repeatability
Ultra Fast Detection System
Quick results with Fast Silicon Drift Detectors
Statistical Analysis
Statistical analysis for multi-point testing results
Testing Method
Non-destructive method of testing
X-ray Tube
Durable X-ray tubes built for continuous operation
Software
X-MasteR software with empirical and fundamental calibration modes
Analysis Capability
Analyze up to 8 elements simultaneously; identify up to 20 elements qualitatively
Pre-calibration
Pre-calibrated for gold and precious metals
Statistical Tools
Includes mean, standard deviation, and trend tracking
Reporting
Customized analysis report
User Interface
Intuitive user-friendly software with integrated display for seamless on-device operation
Technical Data
Full specification
Detector
Fast Silicon Drift Detector (FSDD)
Measuring Direction
Bottom to Top
Applied Application
Gold & Silver Analysis in jewellery and alloys, Precious Metals, Coating Thickness & Bath Analysis
Detector Range
Au, Ag, Cu, Zn, Ni, Pd, Cd, Rh, Ru, Pt, Fe, Co, In, Os, Ir, Mn, Pb, Ti, Hf, Cr, V, W, Ta & More
Measurement Time
10 to 60 sec.
X-ray Tube
Mini-focus, high performance W-target, Spot 0.8mm, Long Life, High efficiency, tungsten target oil cooled
High Voltage
SOkV ( l mA) Software Control Optimized
Collimator
0.3mm0 or O.Smm0, Optional four positions Collimator changer
Dimension
395 x 390 x 320 mm (W x D x H)
Weight
30 kg
