Gold Testing Machine

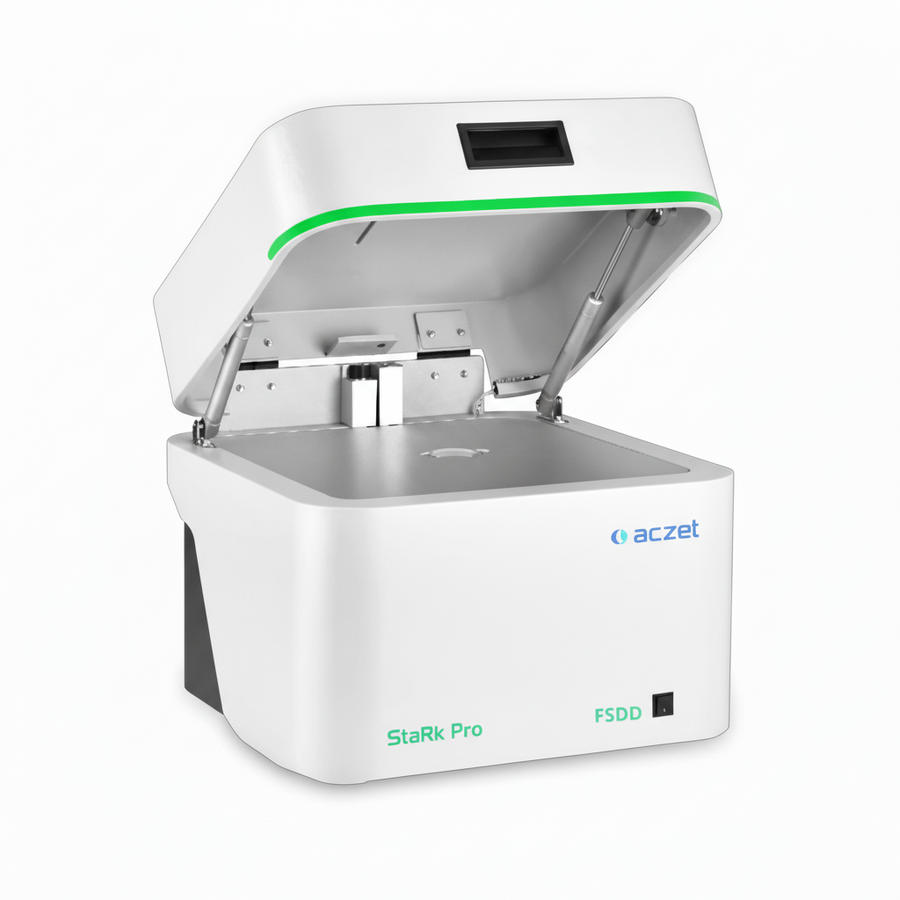

StaRk PRO FSSD XRF for Precious Metal Testing
The StarRk PRO FSDD Gold Testing Machine represents the next generation of precious metal analysis, combining cutting-edge Fast Silicon Drift Detector (FSDD) technology with superior engineering for unmatched performance. Designed for professionals who...
Detector
Fast Silicon Drift Detector (FSDD)
Measuring Direction
Bottom to Top
Applied Application
Gold & Silver Analysis in jewellery and alloys
Official Partner
Exclusive ACZET Distributor
UK & Ireland · Precision Instruments
3 Years Warranty
Next-Day UK Support
Non-Destructive Analysis
About This Product
Product description
Key Features
Why choose the StaRk?
FSDD Technology (Fast SDD)
FSDD Technology (Fast SDD) for enhanced speed and the highest precision in metal analysis
Ultra-rapid testing, delivering accurate purity
Ultra-rapid testing, delivering accurate purity readings in seconds
Non-destructive XRF testing
Non-destructive XRF testing that preserves jewelry and bullion items
Accurate analysis of gold, silver
Accurate analysis of gold, silver, platinum, palladium, and mixed alloys
High-resolution touchscreen interface
High-resolution touchscreen interface with intuitive, user-friendly controls
Stable and durable construction built
Stable and durable construction built for continuous professional use
Ideal for testing jewelry, coins
Ideal for testing jewelry, coins, scrap, bullion, and laboratory samples
Technical Data
Full specification
Detector
Fast Silicon Drift Detector (FSDD)
Measuring Direction
Bottom to Top
Applied Application
Gold & Silver Analysis in jewellery and alloys
Detector Range
Au, Ag, Cu, Zn, Ni, Pd, Cd, Rh, Ru, Pt, Fe, Co, In, Os, Ir, Mn, Pb, Ti, Hf, Cr, V, W, Ta & More
Measurement Time
10 to 60 sec.
Focusing
Auto Focus
Safety Standards
Safety switch to ensure X-ray disperse only when top cover is closed. Auto cut off X-ray during accidental opening of chamber door during testing.
X-ray Tube
Powerful 50 Watts Oil Cooling X-ray Tube
High Voltage
50kV (1 mA) Software Control Optimized
Collimator
1.00mm, 2.00mm, 3.00mm optional
Dimension
395 x 390 x 320 mm (W x D x H)
Weight
28 kg
