Gold Testing Machine

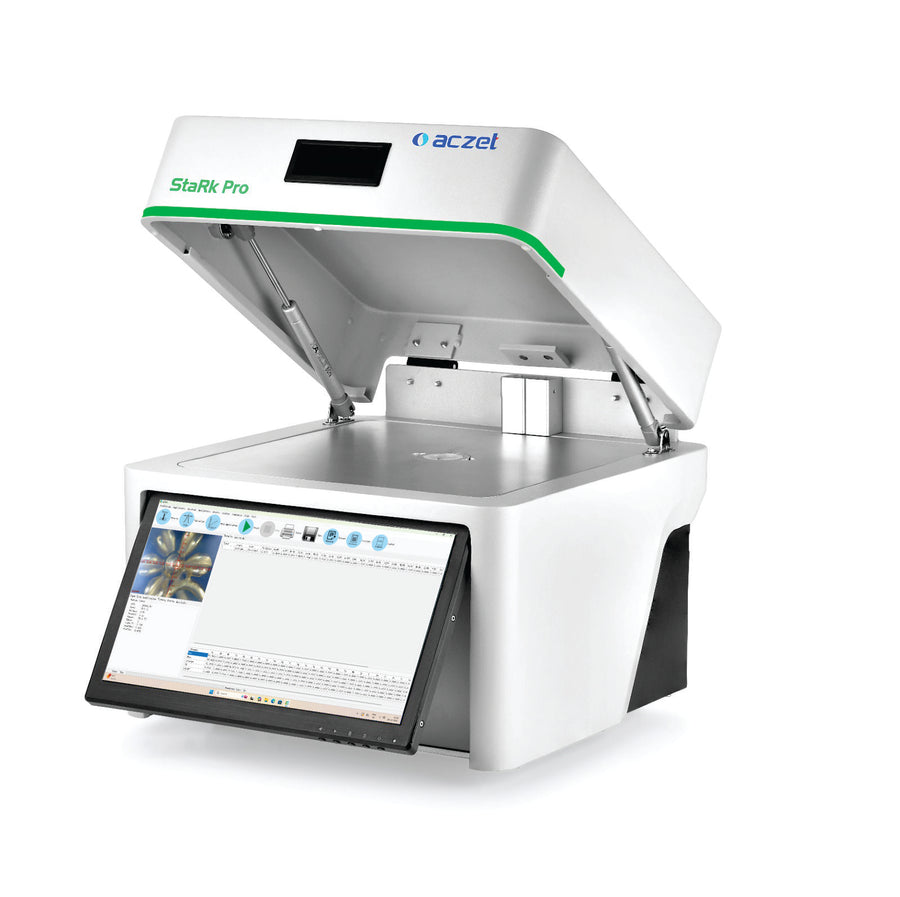

StaRk PRO Pin InBuilt XRF for Precious Metal Testing
The StarRk PRO Inbuilt Pin is a reliable and efficient gold testing machine designed with an integrated pin-probe system for accurate purity analysis. Built for professionals who need quick, consistent results, this model combines precision engineering with a compact, inbuilt structure that ensures long-term stability and ease of use.
Detector
Si-Pin Detector
Measurement Time
10-60 Sec
X-ray Tube
W-Target
Official Partner
Exclusive ACZET Distributor
UK & Ireland · Precision Instruments
3 Years Warranty
Next-Day UK Support
Non-Destructive Analysis
About This Product
Product description
Key Features
Why choose the StaRk?
Multiple Detector Options
Silicon PIN diode
Built-in Screen
Instant on-screen results without the need for an external monitor or computer
Measuring Direction
Bottom-to-top X-ray geometry for effortless sample positioning
Auto Focus
Auto-focus technology reduces setup time and improves repeatability
Ultra Fast Detection System
Quick results with PIN detectors
Statistical Analysis
Statistical analysis for multi-point testing results
Testing Method
Non-destructive method of testing
X-ray Tube
Durable X-ray tubes built for continuous operation
Software
X-MasteR software with empirical and fundamental calibration modes
Analysis Capability
Analyze up to 8 elements simultaneously; identify up to 20 elements qualitatively
Pre-calibration
Pre-calibrated for gold and precious metals
Statistical Tools
Includes mean, standard deviation, and trend tracking
Reporting
Customized analysis report
User Interface
Intuitive user-friendly software with integrated display for seamless on-device operation
Technical Data
Full specification
Detector
Si-Pin Detector
Measuring Direction
Bottom to Top
Applied Application
Gold & Silver Analysis in jewellery and alloys
Detector Range
Au, Ag, Cu, Zn, Ni, Pd, Cd, Rh, Ru, Pt, Fe, Co, In, Os, Ir, Mn, Pb, Ti, Hf, Cr, V, W, Ta & More
Measurement Time
10 to 60 sec.
Focusing
Auto Focus
Safety Standards
Safety switch to ensure X-ray disperse only when top cover is closed. Auto cut off X-ray during accidental opening of chamber door during testing.
X-ray Tube
Powerful 50 Watts Oil Cooling X-ray Tube
High Voltage
50kV (1mA) Software Control Optimized
Collimator
1.00mm, 2.00mm, 3.00mm optional
Dimension
395 x 390 x 320 mm (W x D x H)
Weight
30 kg
